Electrical Testing in Dubai UAE
Electrical Testing
Electrical testing is a crucial aspect of maintaining safe and efficient electrical systems in residential, commercial, and industrial settings. Regular inspections and tests help prevent electrical hazards, ensure compliance with safety standards, and prolong the lifespan of electrical equipment. Below, we explore various types of electrical testing, including PAT testing, thermography, insulation resistance testing, and more.
PAT Testing (Portable Appliance Testing)
Portable Appliance Testing (PAT) is a process to ensure that electrical appliances are safe for use. It involves visual inspections and electrical tests to check for faults such as damaged cables, loose connections, or insulation failures. Common appliances tested include computers, power tools, and kitchen equipment. PAT testing is mandatory in workplaces to comply with health and safety regulations.
Key Tests in PAT Testing:
Earth Continuity Test – Checks the integrity of the earth connection.
Insulation Resistance Test – Ensures insulation is effective.
Polarity Check – Verifies correct wiring.
Functional Check – Ensures the appliance operates safely.
Thermography of Electrical Panels
Thermographic inspections use infrared cameras to detect overheating in electrical panels, connections, and components. Overheating can indicate loose connections, overloaded circuits, or failing components. Early detection prevents fires and equipment failures.
- Non-invasive and real-time analysis.
- Identifies hotspots before they cause damage.
- Reduces downtime by preventing unexpected failures.

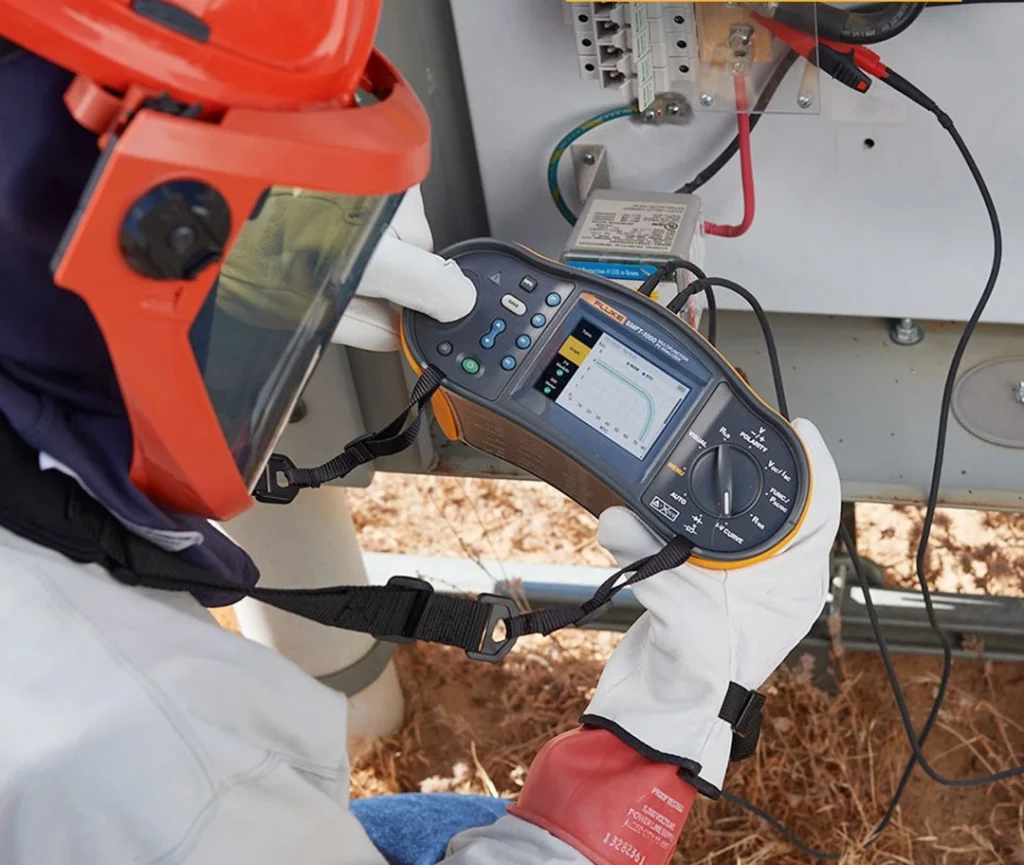

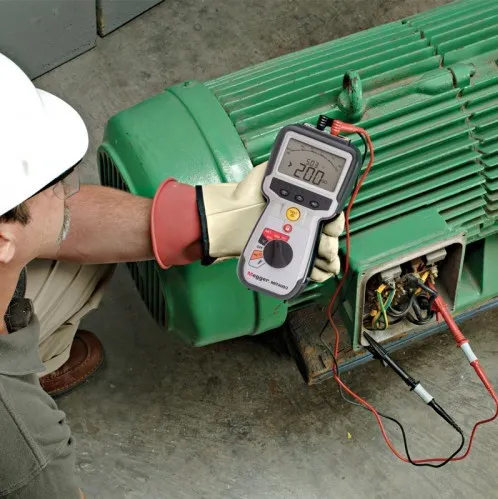

Insulation Resistance Testing (Megger Testing)
Insulation resistance testing, commonly known as Megger testing, measures the integrity of insulation in wires, cables, and electrical equipment. Poor insulation can lead to short circuits, electric shocks, or fires.
How It Works:
A high-voltage DC is applied to the insulation, and resistance is measured. Low resistance indicates degradation or moisture ingress.
Applications:
Testing wiring in buildings.
Verifying motor and transformer insulation.
Ensuring safety in high-voltage systems.
Our Services.
Inspection Services
Velosy Safety Consultancy provides third party inspections in UAE.
Training Services
We offer a wide range of KHDA approved safety trainings couses in UAE.
PAT Testing
Portable Appliance Testing and Certification IN UAE
Storage rack inspection
Storage rack inspection and Certification In UAE.
Thermography
Infrared Thermographic Testing and Certification in UAE.
Megger Testing.
Megger Testing and Certification in UAE
RCD (ELCB) Testing.
RCD (ELCB) Testing and Certification in UAE.

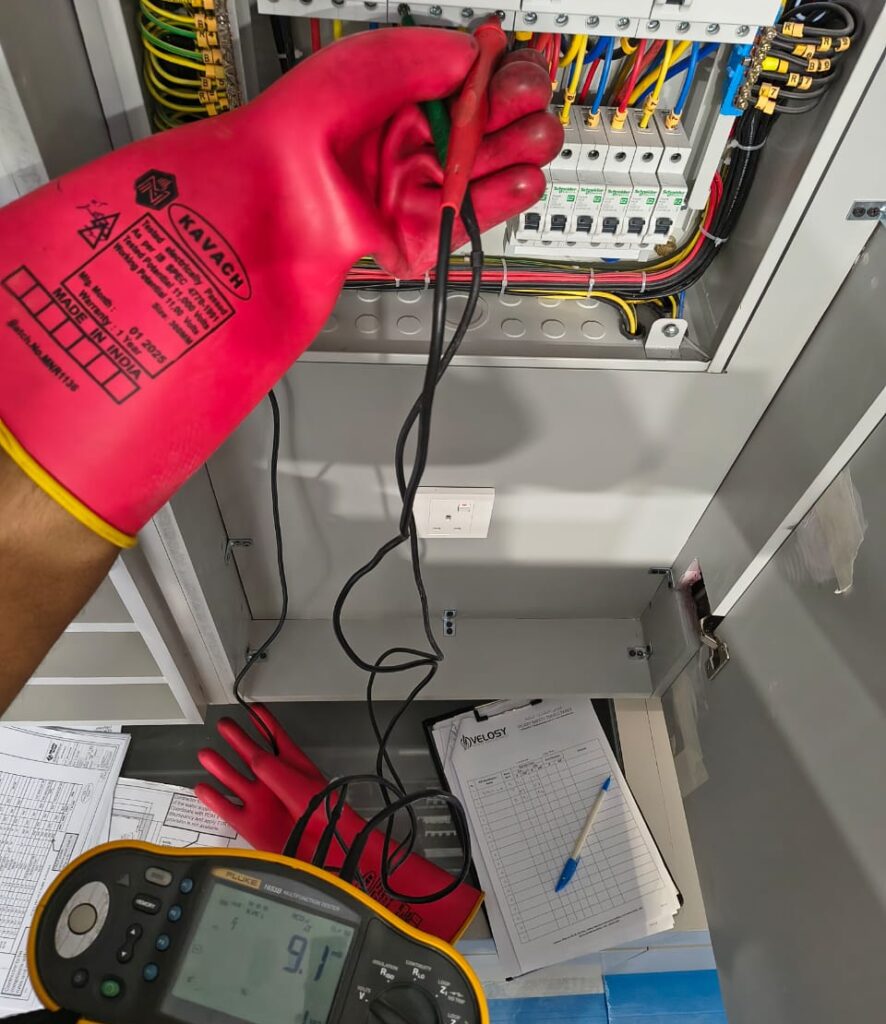

RCD/ELCB Testing
Residual Current Devices (RCDs) and Earth Leakage Circuit Breakers (ELCBs) protect against electric shocks by cutting off power when a fault is detected. Regular testing ensures they trip within the required time (typically <30ms).
Testing Methods:
Push-button Test – Manual check for functionality.
Trip Time Test – Measures response time using an RCD tester.
Earth Fault Simulation – Ensures proper operation under fault conditions.

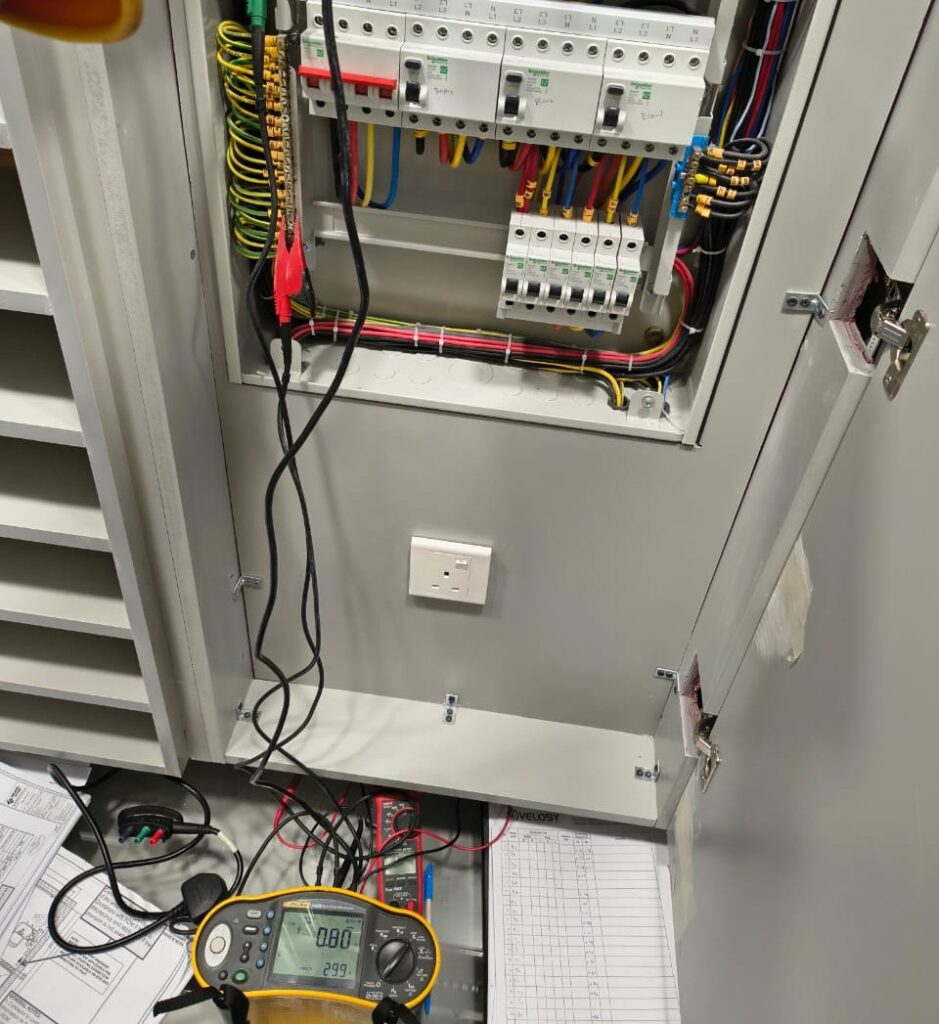

Loop Impedance Testing
Loop impedance testing measures the resistance of the earth fault loop path, ensuring that protective devices (like circuit breakers) will operate quickly in case of a fault. High impedance can delay tripping, increasing shock risks.
Types of Loop Tests:
Earth Fault Loop Impedance (Zs) – Measures the entire circuit.
External Loop Impedance (Ze) – Tests the supply side only.

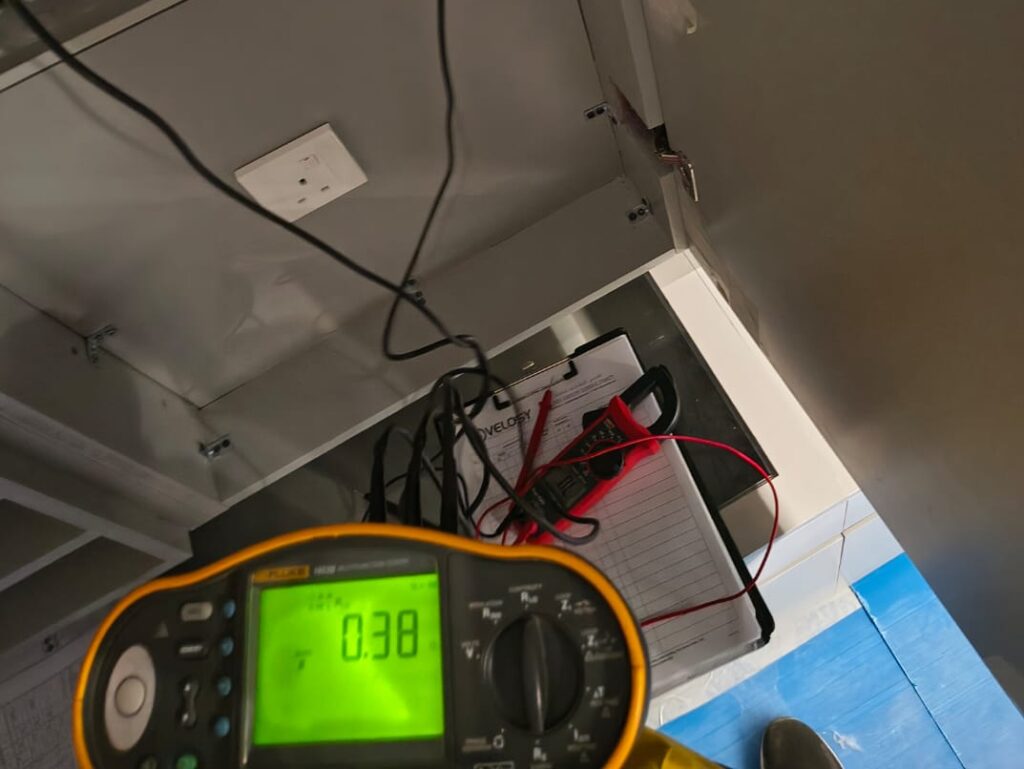

Earth Continuity Testing
This test ensures that all conductive parts of an electrical installation are properly earthed, preventing electric shocks. A low-resistance connection to earth is essential for safety.
Procedure:
A continuity tester applies a small current and measures resistance.
High resistance indicates poor earthing, requiring corrective action.
Earth Pit Inspection
Earth pits (grounding systems) provide a safe path for fault currents. Inspections check for:
Corrosion of electrodes.
Soil condition and moisture levels.
Connection integrity.
Poor grounding can lead to equipment damage and safety hazards.
Lightning Protection System Inspection
Lightning protection systems (LPS) divert lightning strikes safely to the ground. Inspections ensure:
Air terminals (lightning rods) are intact.
Conductors and downleads are secure.
Earth electrodes are functional.
Regular checks are vital in high-risk areas.

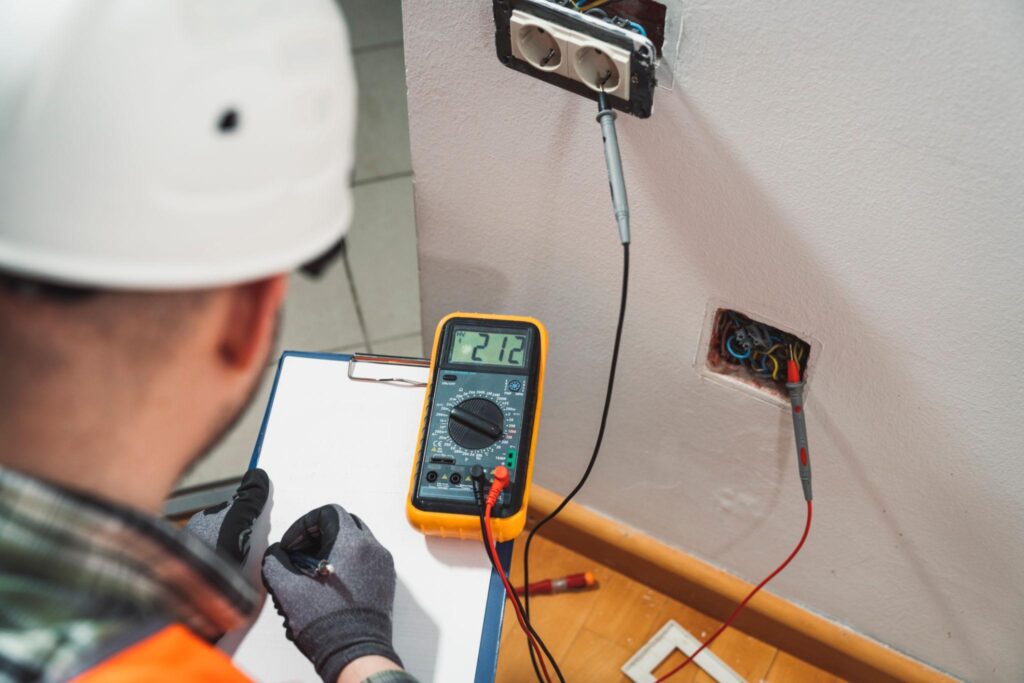

Live and Dead (Cold) Testing
Live Testing – Conducted on energized systems to measure voltage, current, and power quality.
Dead (Cold) Testing – Performed on de-energized systems for safety checks, such as continuity and insulation tests.
Both are essential for commissioning and maintenance.
Electrical Testing and Commissioning
Before energizing a new electrical system, thorough testing and commissioning ensure everything operates safely and efficiently. Tests include:
Primary Injection Testing – Verifies protection relay operation.
Secondary Injection Testing – Checks relay settings.
Functional Testing – Ensures all controls work as intended.
Other Important Electrical Tests

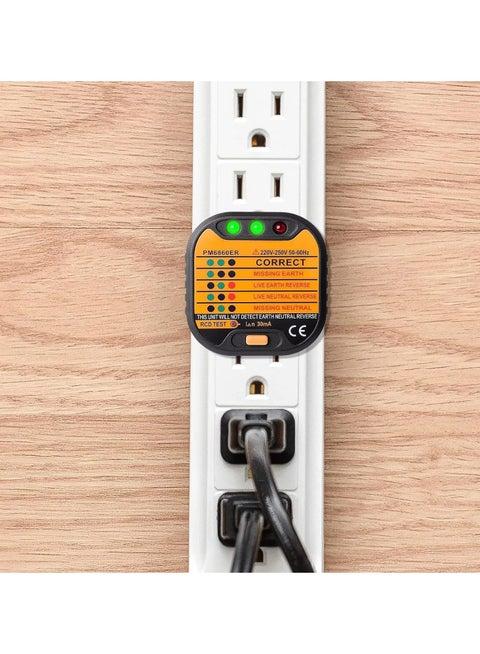

Polarity Testing – Ensures correct wiring.
Voltage Drop Testing – Checks for excessive voltage loss in circuits.
Harmonic Analysis – Identifies power quality issues.
Transformer Turns Ratio (TTR) Testing – Verifies transformer windings.
Conclusion
Regular electrical testing is essential for safety, compliance, and operational efficiency. From PAT testing for portable devices to thermography for overheating detection, each test plays a critical role in preventing hazards. Businesses and homeowners should schedule periodic inspections to comply with regulations (such as BS 7671 in the UK, IEC standards globally and Local Regulations).
By investing in professional electrical testing, you minimize risks, avoid costly downtime, and ensure a safe environment for all users.
