Infrared Thermography Inspection Process Step-by-Step Thermal Imaging Guide

Our infrared thermography inspection process consists of five distinct phases. Specifically, each phase is designed to maximize accuracy while minimizing disruption to your operations.

Step 1: Pre-Inspection Planning and Documentation Review

Firstly, we begin by reviewing your facility’s electrical drawings, equipment schedules, and maintenance history. Specifically, we identify critical assets, establish baseline temperature expectations, and determine optimal inspection windows when systems are under normal operating loads.

During this phase, we also coordinate with your team to schedule access, identify safety requirements, and communicate any special considerations. Consequently, when we arrive on-site, we can begin work immediately without delays.

Furthermore, we review previous inspection reports if available. Therefore, we can identify assets that have shown concerning trends and prioritize them during the scan.

Step 2: On-Site Thermal Imaging Scan

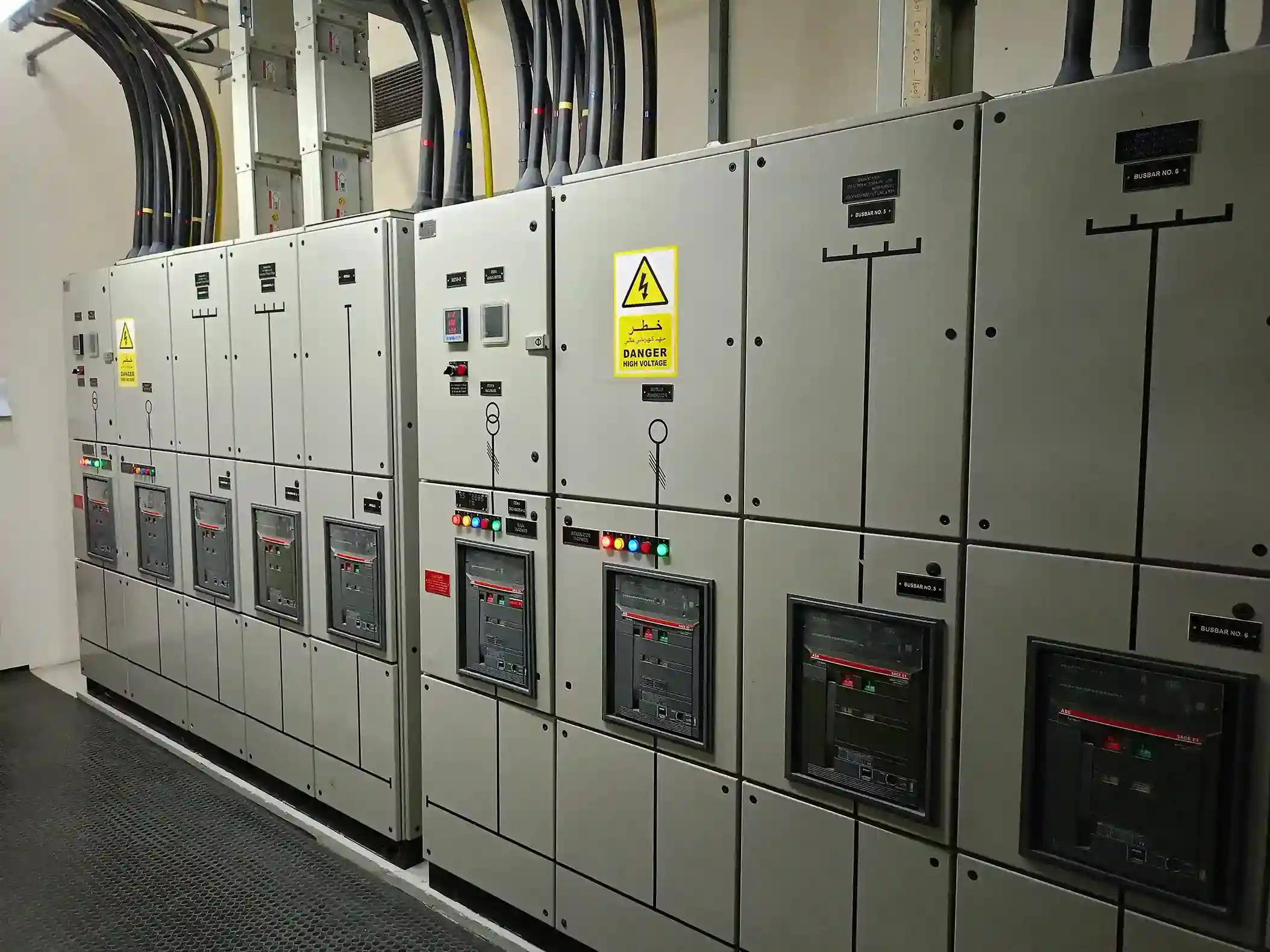

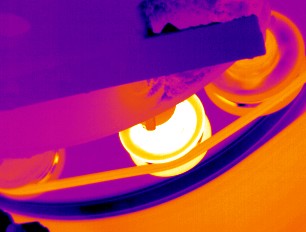

Next, our certified thermographers conduct the on-site thermal scan using advanced infrared cameras. During this phase, we capture high-resolution thermal images of all specified equipment, including electrical panels, switchgear, busbars, motors, pumps, and other critical assets.

Specifically, we follow a systematic scanning pattern to ensure no component is missed. Additionally, we record temperature measurements, load conditions, and environmental factors that could affect readings.

Unlike some providers who rush through scans, we take time to capture multiple angles of each component. Consequently, our thermal images provide complete visibility of temperature patterns.

Step 3: Temperature Data Analysis and Anomaly Detection

Following the scan, we analyze the thermal data using specialized software. Specifically, we compare temperatures against baseline readings, similar components, and industry standards.

During this phase, we classify anomalies by severity using the following criteria:

Furthermore, we identify root causes of thermal anomalies. For example, a hotspot at a terminal connection may indicate a loose connection, corroded terminal, or overloaded circuit.

Step 4: Comprehensive Report Generation

After analysis, we generate a detailed inspection report that includes:

• High-resolution thermal images with temperature measurements

• Visible-light images for equipment identification

• Severity classification for each anomaly

• Root cause analysis and detailed findings

• Prioritized recommendations for corrective actions

• Baseline data for future comparison

Our reports are designed to be actionable, not just informational. Consequently, your maintenance team can immediately understand what issues need attention and how to address them.

Additionally, we provide digital copies of all reports for easy sharing with your team, auditors, and insurance providers.

Step 5: Follow-Up and Trend Analysis (For Annual Contract Clients)

Finally, for clients on annual maintenance contracts, we provide ongoing trend analysis. Specifically, we compare new inspection findings against historical data to identify gradual deterioration.

This proactive approach allows you to predict failures before they occur. As a result, you can schedule repairs during planned maintenance windows rather than reacting to emergency breakdowns.

Learn about our thermographic inspection cost for annual contracts →
